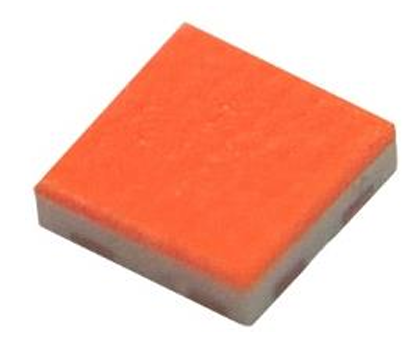

1717 Series (PEC2.0+ with Flip Chip)
Features & Benefits:
- Ultra-compact package with Pad Extension Chip (PEC) technology
- Flip chip construction for better thermal and electrical performance
- JEDEC Level 1 MSL, RoHS compliant
- Pb-free reflow soldering ready
- Superior optical control and color mixing
- Ideal for space-limited automotive lighting designs
Color Option & Customization
- 3W: PC Red, PC Amber, Green, Blue, White
| Photo | Part No. | Wavelength (nm)/CCT (K) | Color | Forward Current (mA) | Max. Power (W) | Lumen Output (lm) | 3D Spec |
|---|---|---|---|---|---|---|---|
 | AB-PL1717C525-3VX3 | 525 | Green | 350 | 3 | 145 |  |
| | AB-PL1717C470-3VX3 | 470 | Blue | 350 | 3 | 41.3 | |
| | AB-PL1717C615-3VX3 | 615 | PC Red | 350 | 3 | 38 | |
| | AB-PL1717C590-3VX3 | 590 | PC Amber | 350 | 3 | 115 | |
| | AB-PL1717D058-3V83 | 5800 | Cool White | 350 | 3 | 140 | |
