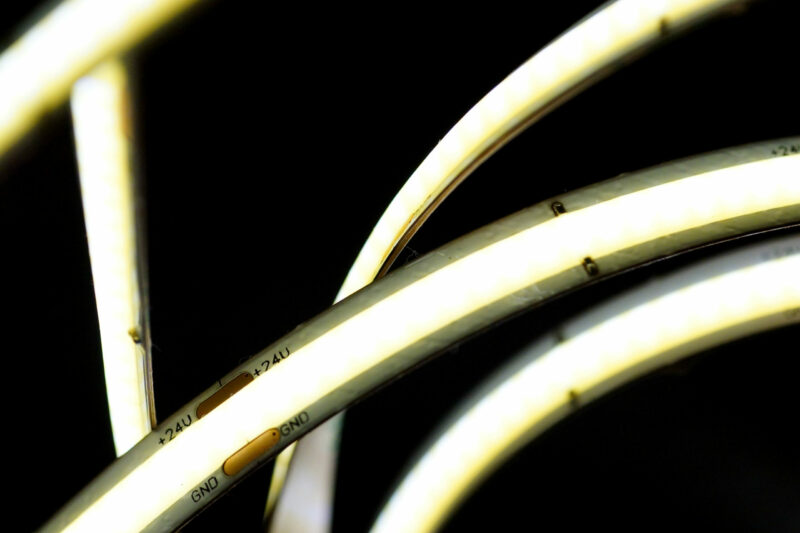

Flexible COB Lights
It is constructed with epoxy material and available in single color in warm white, neutral white and cool white along with green and amber. Also available is dual combination of warm white and cool white.
Features
- UL Certified (UL 2108)
- Single color & dual color available
- Dimmable
- IP65 Waterproof rating
- High lumen output (up to 1200 lm/m; 365 lm/ft)
- Wide viewing angle (150°)
- Storage Temperature: -20°C~65°C
- Operating Temperature: -20°C~60°C
- Humidity tolerance: 40-70% RH
Single Color Options
- Amber
- Green
- Yellow
- Warm White
- Neutral White
- Cool White
Dual Color Version
The dual version COB light strip is one of the inventions from American Bright’s dedication on the new product development. Available now in warm white + cool white!
RGB, RGBW and Addressable Versions
Available in RGB, RGBW, and addressable versions, our COB lights offer versatile lighting solutions that enhance any environment with vibrant colors and dynamic effects.
Applications
- General Lighting
- Decoration
- Signage
- Ambient Lighting
- Indicator
- Accent Lighting
Need help finding something?
Contact us at sales@americanbrightled.com or fill out the form on the contact page.
| Part No. | CCT/Color | Type | Lumen/m | Power/m | CRI | IP Rating |
|---|---|---|---|---|---|---|
| AB-FO01227-19712-9A1 | 2700K | Single 12V | 840 | 12 | >90 | IP 20 |
| AB-FO01230-19712-9A1 | 3000K | Single 12V | 912 | 12 | >90 | IP 20 |
| AB-FO01240-19712-9A1 | 4000K | Single 12V | 1020 | 12 | >90 | IP 20 |
| AB-FO01265-19712-9A1 | 6500K | Single 12V | 1080 | 12 | >90 | IP 20 |
| AB-FO012RD-19712-XA1 | 520-530nm | Single 12V | 240 | 12 | n/a | IP 20 |
| AB-FO012GN-19712-XA1 | 625-635nm | Single 12V | 756 | 12 | n/a | IP 20 |
| AB-FO012BL-19712-XA1 | 460-470nm | Single 12V | 192 | 12 | n/a | IP 20 |
| AB-FO012AM-19712-XA1 | 590-595nm | Single 12V | 636 | 12 | n/a | IP 20 |
| AB-FO02427-19712-9A1 | 2700K | Single 24V | 840 | 12 | >90 | IP 20 |
| AB-FO02430-19712-9A1 | 3000K | Single 24V | 912 | 12 | >90 | IP 20 |
| AB-FO02440-19712-9A1 | 4000K | Single 24V | 1020 | 12 | >90 | IP 20 |
| AB-FO02465-19712-9A1 | 6500K | Single 24V | 1080 | 12 | >90 | IP 20 |
| AB-FO024RD-19712-XA1 | 520-530nm | Single 24V | 240 | 12 | n/a | IP 20 |
| AB-FO024GN-19712-XA1 | 625-635nm | Single 24V | 756 | 12 | n/a | IP 20 |
| AB-FO024BL-19712-XA1 | 460-470nm | Single 24V | 192 | 12 | n/a | IP 20 |
| AB-FO024AM-19712-XA1 | 590-595nm | Single 24V | 636 | 12 | n/a | IP 20 |
| AB-FO02401-02012-9A1 | 3000K | Dual 24V | 420 | 6 | >90 | IP 20 |
| AB-FO02401-02012-9A1 | 6500K | Dual 24V | 480 | 6 | >90 | IP 20 |
| AB-FO012I8-19712-XA1 | RGB+IC | Single 12V | 630/525/465 | 8 | n/a | IP 20 |
| AB-FO024I8-19712-XA1 | RGB+IC | Single 24V | 630/525/465 | 8 | n/a | IP 20 |
| AB-FO005I8-07912-XA1 | RGB+IC | Single 5V | N/A | N/A | N/A | IP 20 |
| AB-FO01206-19712-XA1 | RGB | Single 12V | 143/400/119 | 15.7 | N/A | IP 20 |
| AB-FO02406-19712-XA1 | RGB | Single 24V | 143/400/119 | 15.7 | N/A | IP 20 |
| AB-FOC01206-19712-XA1 | RGB | Single 12V | 143/400/119 | 15.7 | N/A | IP 65 |
| AB-FOC02406-19712-XA1 | RGB | Single 24V | 143/400/119 | 15.7 | N/A | IP 65 |
| AB-FOC012I8-19712-XA1 | RGB+IC | Single 12V | 120/448/88 | 24 | N/A | IP 65 |
| AB-FOC024I8-19712-XA1 | RGB+IC | Single 24V | 120/448/88 | 24 | N/A | IP 65 |
| AB-FOD01206-19712-XA1 | RGB | Single 12V | 143/400/119 | 15.7 | N/A | IP 68 |
| AB-FOD02406-19712-XA1 | RGB | Single 24V | 143/400/119 | 15.7 | N/A | IP 68 |
| AB-FOD012I8-19712-XA1 | RGB+IC | Single 12V | 120/448/88 | 24 | N/A | IP 68 |
| AB-FOD024I8-19712-XA1 | RGB+IC | Single 24V | 120/448/88 | 24 | N/A | IP 68 |
